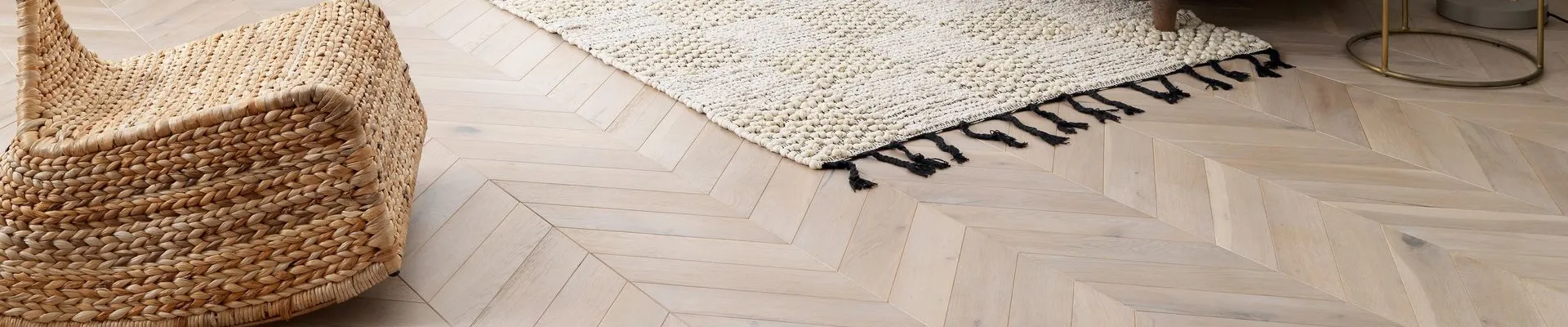

chevron spc flooring Installation Scene

chevron SPC Flooring

Engineered for prestigious commercial artistry: Our rigid core Chevron SPC flooring masterfully unifies the uncompromising stability of Stone Polymer Composite with the timeless V-shaped geometric symmetry of classic parquetry. Designed with precision-milled 45°/60° mitered click profiles, it delivers a 100% waterproof, underfloor-heating optimized foundation that captures the authentic tactile depth of premium hardwood, elevating high-traffic architectural footprints with a seamless, dimensionally inert luxury finish.

JH® for Lifelong Performance –
Never Refinished. Always Restored.

Precision Aesthetics: High-fidelity replication for premium print layer balancing. Tap into an elite design library of thousands of bespoke woodgrains, architectural stones, industrial cements, and minimalist abstract textures—engineered to secure absolute regional market exclusivity for your brand.

Micro-Calibrated Sync (EIR): Advanced texture-plate alignment locking the physical surface pore reliefs to the underlying high-definition print layer within micron-level tolerances. Delivers a flawless, multi-dimensional tactile depth that perfectly mirrors authentic organic materials.

Flooring Design chevron SPC Portfolio

Application JIAHE DECORATION Apply

spc commercial flooring

spc commercial flooring

Inquire Now

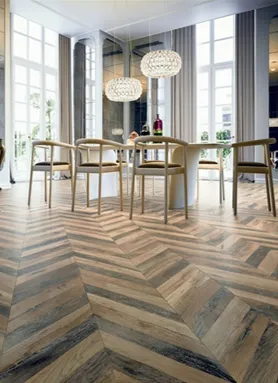

spc living room flooring

spc living room flooring

Inquire Now

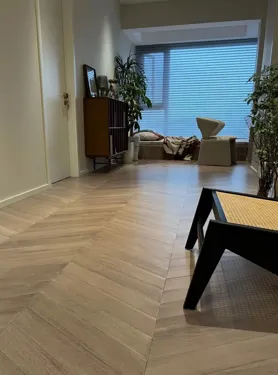

spc bathroom flooring

spc bathroom flooring

Inquire Now

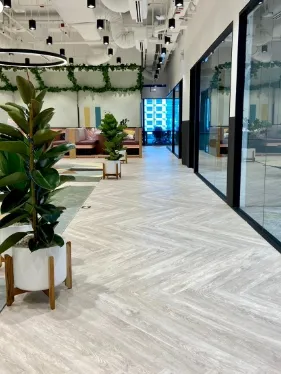

spc kitchen flooring

spc kitchen flooring

Inquire Now

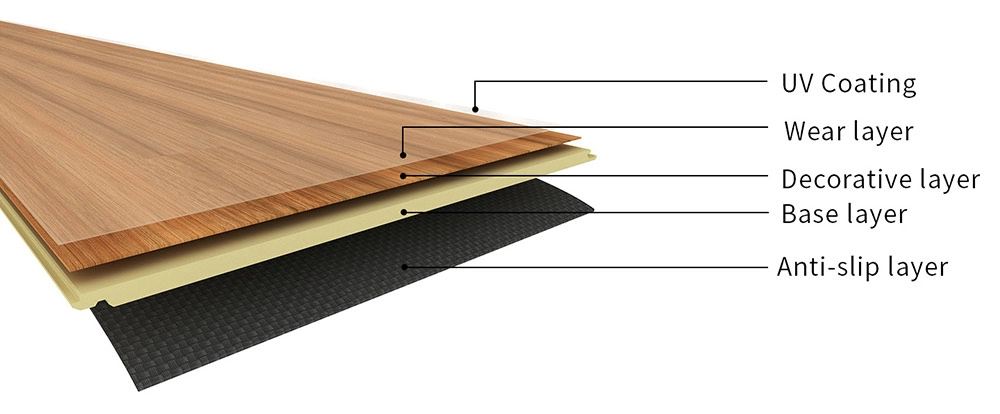

Chevron SPC Flooring Structure Anatomy 01 / Anatomy

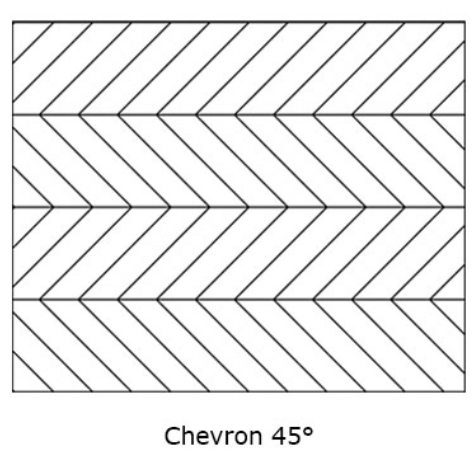

Chevron 45 Degree Precision Guide 02 / Alignment
Chevron SPC Dimension Matrix 03 / Dimension

Engineering Excellence

What Is Chevron SPC Flooring?

Chevron SPC flooring is a unique and stylish form of SPC click-lock flooring, featuring planks installed at an angle—ranging from 45° to 60°—to create a continuous and dynamic “V” pattern. This diagonal layout adds depth and visual movement to any space, offering a modern twist to traditional flooring aesthetics. We offer customization at every 5° increment to suit different design needs and project requirements.

  1. 1

    UV Surface Coating

    Advanced cross-linked polyurethane UV shield delivering superior stain resistance, scratch immunity, and gloss-controlled surface clarity.

  2. 2

    Commercial Wear Layer (Customizable Thickness)

    High-density pure transparent vinyl shield layer available in variable thicknesses (0.3mm / 0.55mm / 0.7mm) with precise micro-embossing to guard geometric patterns under intense dynamic loads.

  3. 3

    High-Definition Chevron Decor Film

    Ultra-precise print films engineered specifically for 45°/60° mitered symmetry, capturing perfectly aligned, organic wood grains for an authentic parquetry presentation.

  4. 4

    Solid Rigid SPC Core

    High-density limestone mineral and virgin PVC composite substrate. Extruded with maximum dimensional stability to eliminate joint expansion, protecting the micro-calibrated click-lock systems.

  5. 5

    Acoustic Underlayment (Optional)

    Pre-attached IXPE high-elastic foam pad providing advanced dynamic impact sound insulation (Delta IIC) and outstanding ergonomic walking comfort.

Technical Features & Performance

ECO FRIENDLY

ECO FRIENDLY

Engineered from 100% sustainable mineral-polymer matrices, containing zero formaldehyde, plasticizers, or heavy metals. Formulated under strict European compliance to guarantee premium, non-toxic IAQ (Indoor Air Quality) for certified green building blueprints.

EASY INSTALLATION

EASY INSTALLATION

Engineered with a high-precision unilin/Valinge micro-click profile tailored for parquetry alignment. It enables flawless 45°/60° geometric balancing as a floating system over existing subfloors, slashing commercial site installation timelines and adhesive liabilities.

WEATHER RESISTANCE

WEATHER RESISTANCE

Specially calibrated to yield an ultra-low thermal expansion coefficient with superior thermal conductivity. It maintains supreme dimensional integrity under drastic temperature fluctuations, acting as an inert, telegraphing-proof partner for modern underfloor heating grids.

GOOD DESIGN

GOOD DESIGN

Captures the ultimate European luxury parquetry aesthetic with perfectly balanced V-shaped linear symmetry. Utilizes micro-groove mitered edges to emphasize the deep geometric continuity, providing high-end architectural spaces with a seamless, designer-grade luxury finish.

DURABLE

DURABLE

Fortified with an ultra-dense stone-plastic composite base structure capable of absorbing intense dynamic loading and heavy contract foot traffic. It retains its structural shape over long lifecycles without showing indentation, crowning, or hollow sounds.

COMFORTABLE TOUCH

COMFORTABLE TOUCH

Despite its rigid stone core composition, the multi-layered surface architecture delivers excellent underfoot energy return and subtle warmth. It perfectly balances raw organic wood grain textures with optimal slip-resistance for ergonomic commercial footprints.

FIRE RESISTANT

FIRE RESISTANT

Certified to meet global fire-safety benchmarks (EN 13501-1 Class Bfl-S1 standard). It provides advanced flame retardancy, self-extinguishing chemistry, and extremely low smoke toxicity, ensuring reliable life-safety compliance in hotels, hospitals, and high-rise projects.

QUIET

QUIET

Enhanced with acoustic mitigation layer tech. The design attenuates impact sound transmission and controls reflection echo within multi-story commercial layouts, dampening high-frequency noise for premium tranquility in hotels, offices, and apartments.

EASY CLEAN

EASY CLEAN

Shielded by an impenetrable, high-performance PUR top-surface treatment that completely seals the micro-grooves. It repels stubborn stains, fluid ink, oil, and bacteria, allowing low-maintenance sanitization through effortless sweeping and commercial mopping workflows.

UV RESISTANCE

UV RESISTANCE

Treated with cross-linked UV-stabilized polyurethane technology to block fading from direct solar radiation. It protects the color fastness of the intricate Chevron timber visuals over years of exposure, making it ideal for sunlit floor-to-ceiling perimeter applications.

Chevron SPC / Fish bone SPC

What size we can provide of SPC flooring

Product Name: Chevron SPC / Fish bone SPC
Common Size: 95x 450mm,127x 600mm
Common Thickness: Overall thickness 5.0mm ~ 6.5mm
Wear layer: 0.3mm / 0.5mm / 0.7mm
Acoustic Pad :1.5mm IXPE Pad

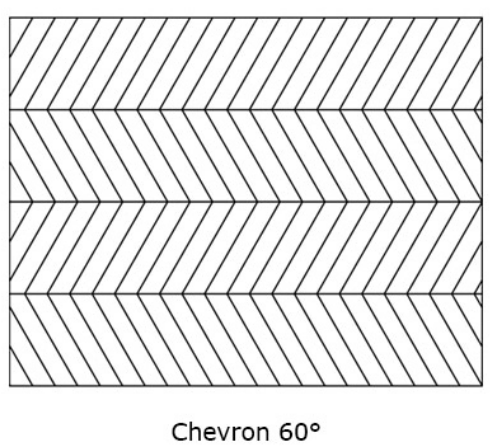

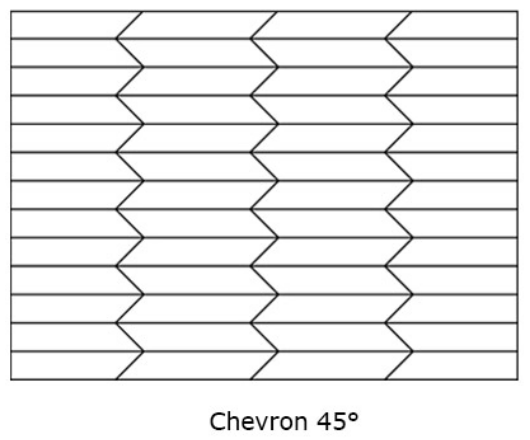

Common Angle: 45°, can customized angle from 45° ~ 60°, every 5° as a new specification.

45°/60° Mitered Joint Precision Click-Lock Micro-Bevel Edge PUR Stain Shield
Chevron SPC Flooring Close-up
Geometric Alignment 01 / 04
Click-Lock Joint Detail
Click System 03 / 04
Commercial Space Interior
Technical Map 02 / 04
Chevron Color Swatches
Color Swatch 04 / 04

Explore Colors & Decors

Our comprehensive design library is precision-curated to align with regional architectural taste parameters and specifications across 5 continents.

View Full Palette
Quality Assurance

Technical Datasheet

1. Product Information
Product Information Chevron SPC Click Flooring
Material 100% Virgin PVC + Calcium Calcite Mineral Powder
Plank Size 183 × 1220 mm (Custom Parquetry Scale Available)
Finish Cross-linked UV Coating, Semi-matt 6–8° Gloss Control
Emboss Deep Embossed / Crystal Micro-texture
Installation Floating Click Lock System
Locking System Välinge 2G / 5G Mitered Drop-Lock
Bevel Four-sided Micro-beveled Edges
Floor Heating Installation Highly suitable for modern underfloor heating grids
2. Underlayment Information (Optional)
Material IXPE / EVA (High-elastic Acoustic Foam Pad)
Overall Thickness 1.0 mm / 1.5 mm (+/- 0.1mm, unstressed)
3. Reference Performance Norms & Standards Test Results
Tolerance of Length EN ISO 24342 ≤ 0.15%, up to 0.5mm maximum
Tolerance of Width EN ISO 24342 ≤ 0.15%, up to 0.5mm maximum
Tolerance on Squareness EN ISO 24342 Side length ≤ 400mm, squareness ≤ 0.25mm Side length > 400mm, squareness ≤ 0.35mm
Core Thickness EN ISO 24346 3.5 mm / 4.0 mm / 5.0 mm (+/- 0.15mm)
Wear Layer Thickness EN ISO 24340 0.3 mm / 0.55 mm / 0.7 mm (+/- 0.05mm)
Determination of Stability EN ISO 23999 ≤ 0.15%
Curling Resistance EN ISO 23999 ≤ 1.0 mm
Color Fastness to Light EN ISO 105-B02 ≥ Grade 6
Reaction to Fire EN 13501-1 Class Bfl-S1 (Self-extinguishing)
Castor Chair Resistance EN 425 Pass (No structural delamination)
Peeling Strength of Layer EN 431 ≥ 95 N / 5 cm
Locking Strength ISO 24334 Long-side: ≥ 150 N/5cm Short-side: ≥ 150 N/5cm
Classification EN 685 Class 23 (Heavy Residential) Class 34 (Heavy Commercial)
Stain Resistance EN 423 Grade 0 / Not Affected
VOC Emissions ISO 16000 VOC A+ (Ultra-Low)
Slip Resistance DIN 51130 Class R9 / R10 Available
Residual Indentation ISO 24343-1:2007 ≤ 0.10 mm
Chemical Products Resistance EN 423 Pass / Highly Resistant
Ortho-Phthalates US EPA 3550c:2007 None Detected
PCP Content EN 12673 None Detected
Formaldehyde Emission EN 717-1 Class E1 (Formaldehyde Free)

Global Trust & Manufacturing Authority

Backed by international compliance verifications, scalable industrial capacity, and consistent global presence.

Global Trade Show
Live Engagement

Global Trade Show

We actively benchmark our manufacturing capabilities on top-tier global stages. By consistently showcasing our portfolios at world-renowned exhibitions including DOMOTEX (Hannover), BAU (Munich), MosBuild (Moscow), DOMOTEX asia/CHINAFLOOR, the China Import and Export Fair (Canton Fair), and BATIMAT (Paris), we connect face-to-face with international contractors and distributors to deliver high-performance commercial flooring solutions.

A Reliable SPC Manufacturer
Factory Direct

A Reliable SPC Manufacturer

As an elite OEM/ODM manufacturing hub, we operate heavy-duty extrusion lines calibrated for strict dimensional tolerances. Our fully integrated supply chain guarantees stable premium capacity, flexible thick/size customization, and true factory-direct cost-efficiency.

International Certificates
Compliance

International Certificates

Our products pass rigorous global verification protocols to ensure structural security and environmental wellness.

  • CE Certified
  • SGS Wear & Fire Test Passed
  • TUV Rheinland Audited
  • ISO 9001 / 14001 Quality System

FAQ of JIAHE DECORATION

Professional insights and technical guidance regarding manufacturing capacities, quality criteria, and installation specifications.

01

Are you a factory or manufacturer? What's your monthly throughput?

Yes, we are a direct manufacturer operating two production bases in ShenZhen, GuangDong. Our scalable industrial footprint delivers an aggregate monthly throughput of 300–400 containers of SPC, 200–300 containers of LVT, and 50–100 containers of MGO flooring to reliably back volume global procurement.

02

How do you guarantee product quality and consistency?

We strictly utilize 100% virgin raw materials with zero recycled content to eliminate sub-surface defects. Every phase of production—from continuous extrusion calibration to click-profile milling—is strictly audited by our in-house QC engineering team to verify structural and dimensional integrity.

03

What is your typical turnaround time for bulk container orders?

For initial OEM/ODM bookings, the standard lead time is 30–35 days upon receipt of the 30% T/T deposit (complimentary stock samples are prepared within 5 days). Repeat/regular program orders are expedited and typically finalized within a streamlined 20–25 days window.

04

Do you offer architectural products beyond standard vinyl floorings?

Yes. Our technical portfolio extends across high-spec alternatives including MGO flooring, mineral core flooring, rigid core timber, self-adhesive tiles, quartz sand tile solutions, and contract sheet/roll flooring. Furthermore, we manufacture matching SPC wall panels to provide seamless, coordinated interior surfacing solutions.

05

What is your sample policy regarding commercial prospecting?

In alignment with our corporate trade policy, physical flooring swatches are provided completely free of charge. The prospective buyer is simply requested to provide a courier account number (DHL/FedEx/UPS) to cover the corresponding freight logistics costs.

06

What are your standard commercial payment parameters?

Our baseline framework operates on a 30% advance deposit via T/T, with the remaining 70% balanced against the presentation of the Bill of Lading (B/L) copy. Credit and financial flexibility may be customized for long-term contract partners and VIP accounts.

07

Do you provide full-spectrum OEM private label solutions?

Absolutely. We deliver full-spectrum private label manufacturing covering customized wear layer parameters, bespoke core formulations, custom dimensions, and branded packaging cartons. Our marketing team can also collaborate to co-develop architectural swatch books and retail display boards.

08

Can you develop and calibrate proprietary print-film designs for our brand?

Yes, we offer exclusive color film customization services. Our design team can replicate natural timber or stone artifacts provided via physical panels or high-resolution scanning to ensure your brand maintains a completely unique visual edge in local markets.

09

What are the recommended maintenance and janitorial protocols?

To sustain the integrity of our DIAMOND surface treatment, regularly sweep or vacuum surface particulate. For deeper damp mopping, always utilize a professional neutral, non-rinsing resilient floor cleaner. Never apply abrasive scouring powders, oil-based soaps, or household dish detergents.

10

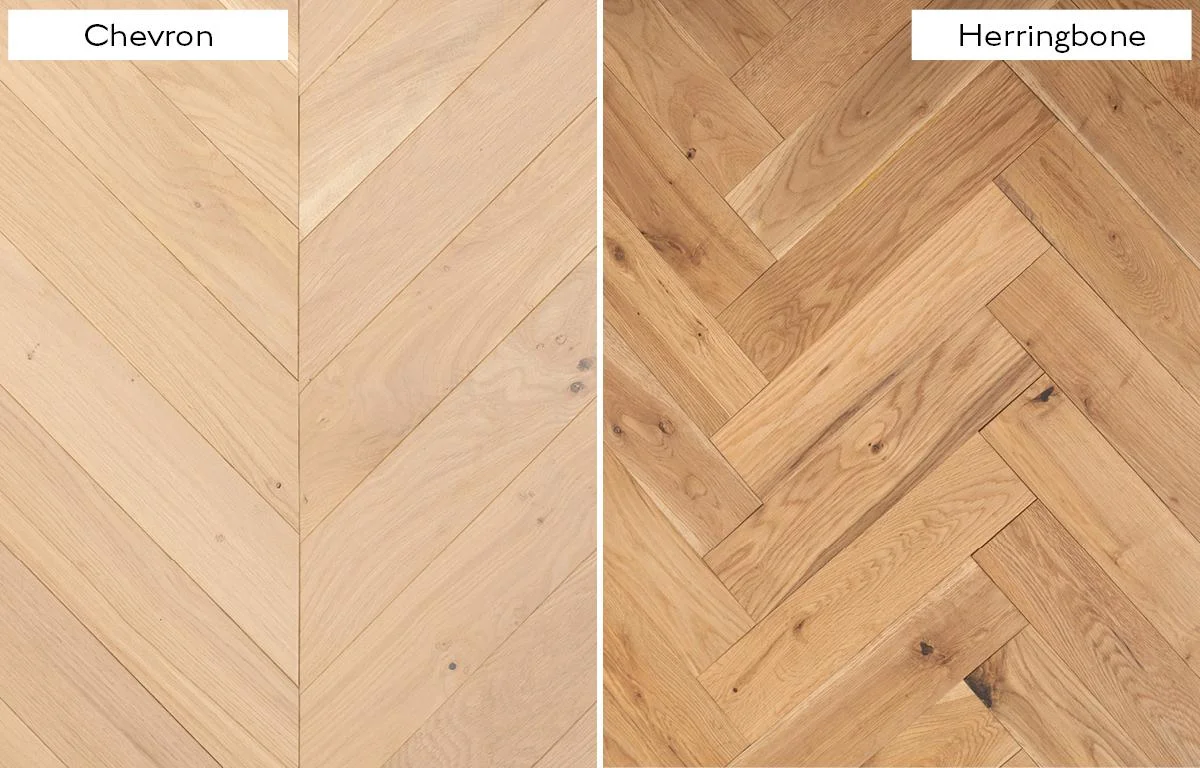

How do you technically distinguish Chevron vs. Herringbone layouts?

While both represent classic parquetry motifs, they require different geometric milling profile configurations. Herringbone planks feature 90-degree squared joints that butt against each other for a traditional interlocking zig-zag, whereas Chevron profiles feature precision 45 or 60-degree mitered angle cuts, meeting at a true point to create a continuous V-shaped running centerline.
