Premium LVT Loose Lay Flooring
Engineered for agile commercial performance: Our luxury LVT loose lay flooring utilizes a multi-layer fiberglass-reinforced structure coupled with an advanced non-skid, high-friction backing. Built for glue-free, rapid-installation project blueprints, it delivers premium underfoot comfort, exceptional sound absorption, and maximum dimensional stability under heavy foot traffic.
JH® for Lifelong Performance –
Never Refinished. Always Restored.
Bespoke Commercial Aesthetics: High-fidelity replication engineered for heavy contract environments. Tap into an elite design library of thousands of bespoke authentic woodgrains, refined architectural stones, and industrial concrete textures—specifically curated to secure absolute regional market exclusivity for your brand portfolio.
Acoustic and Dimensional Inertness: Formulated with a specialized fiberglass stabilization layer encapsulated within multi-layered premium vinyl. This architecture ensures absolute dimensional parameters while providing superb underfoot cushion and an industry-leading acoustic dampening matrix that silences heavy commercial dynamic loads.
Commercial Collections

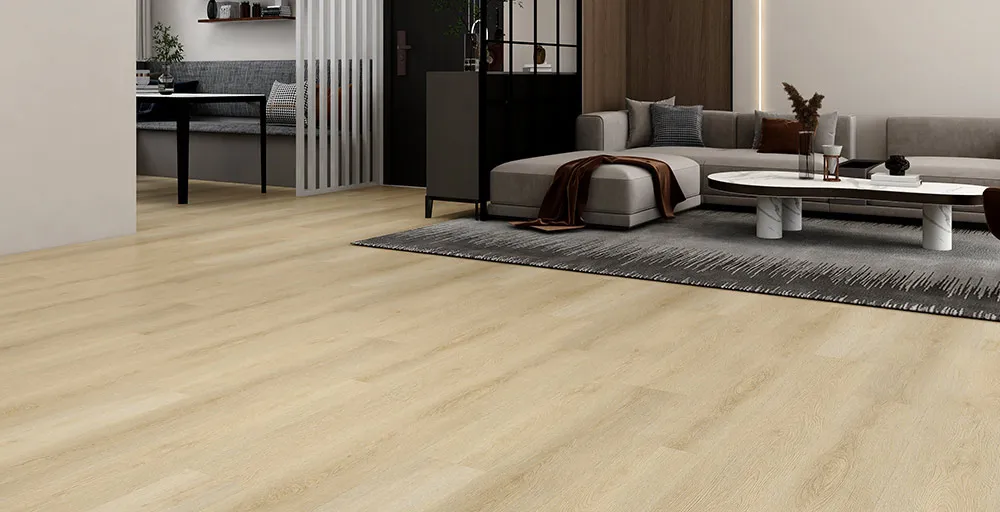

Peel & Stick Vinyl Flooring
Inquire Now

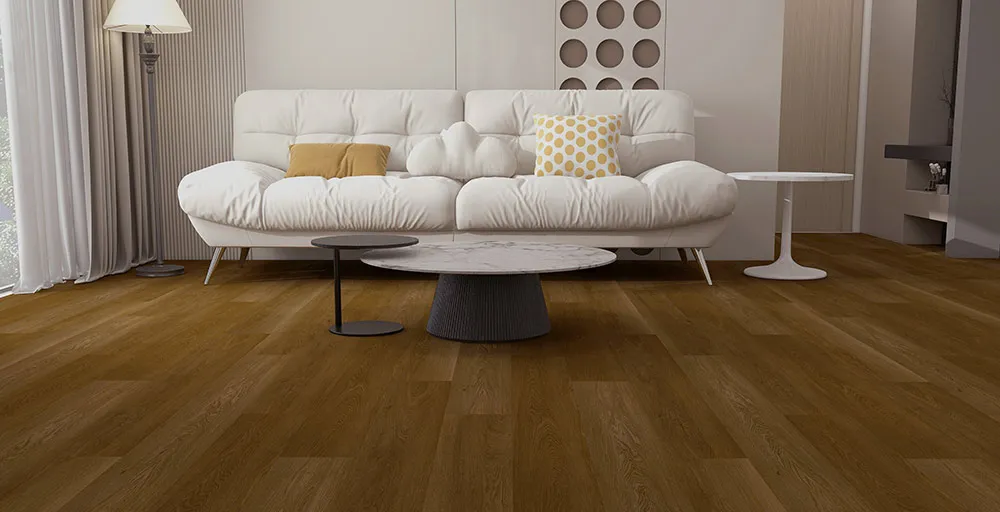

Dry Back Luxury Vinyl Flooring
Inquire Now

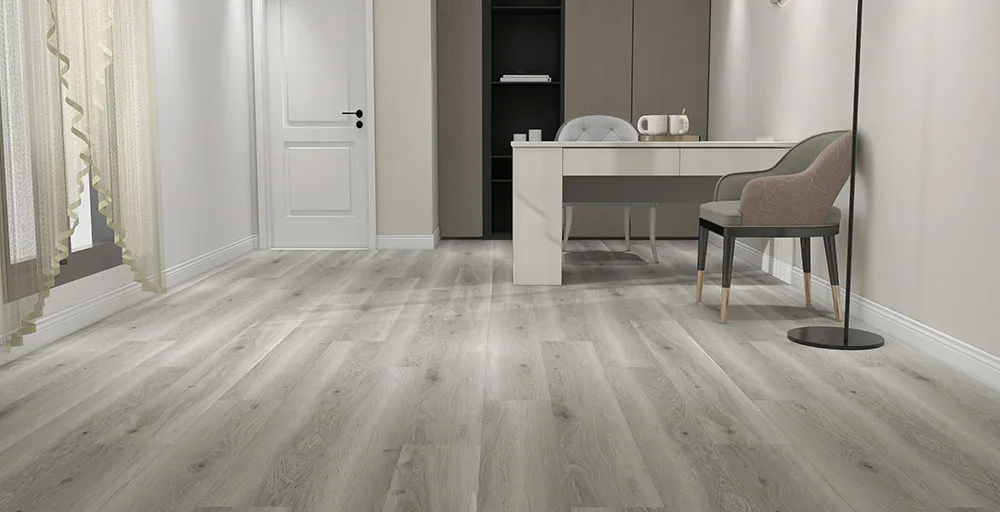

LVT Click
Inquire Now

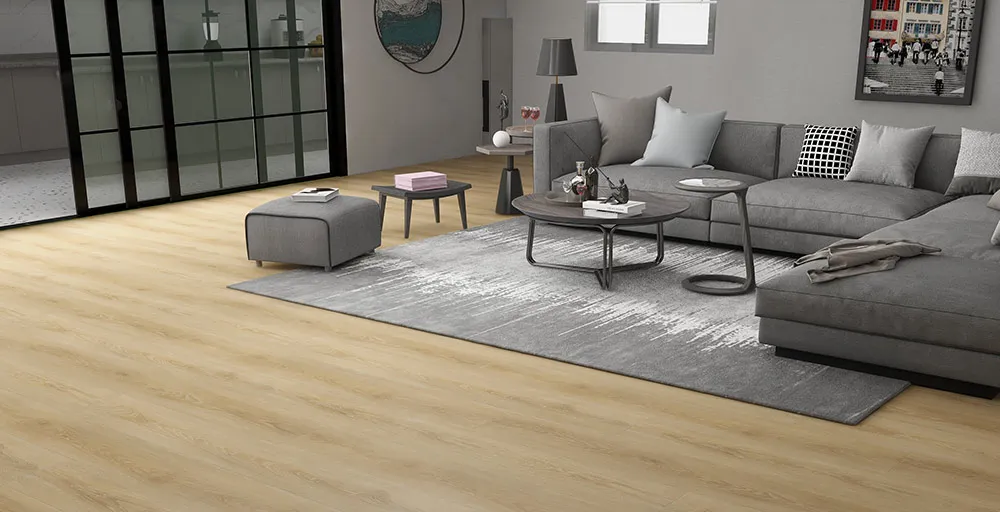

Loose Lay
Inquire Now
Engineering Excellence
What Is LVT/LVP Flooring?
LVT Loose Lay flooring is an advanced category of luxury vinyl flooring celebrated for its high-stability, non-adhesive deployment mechanism. Engineered without complex interlocking tongues or glue requirements, it utilizes an ultra-dense, multi-layered vinyl structure reinforced with a specialized fiberglass core to maintain flat dimensional integrity. Supported by a proprietary heavy-duty, high-friction backing that self-adheres securely to any subfloor typography, this flooring delivers unmatched performance in rapid-renovation commercial projects, heavy contract layouts, and high-traffic multi-family or office spaces where superior acoustic insulation and premium underfoot comfort are critical.
-
1
UV Coating
Advanced cross-linked polyurethane surface shield delivering superior stain immunity and scuff resistance.
-
2
Wear layer
High-density transparent pure vinyl armor (0.55mm / 0.7mm) engineered to withstand heavy, continuous contract traffic.
-
3
PVC Decor film
High-definition photorealistic print film rendering organic timber grain depths and precise tactile mineral textures.
-
4
Middle material layer (Upper)
Premium virgin PVC compounding layer designed to absorb impact stress and provide underfoot elasticity.
-
5
Fiber glass layer
The structural core anchor. High-tensile non-woven fiberglass mesh preventing thermal expansion and warping.
-
6
Middle material layer (Lower)
Secondary backing PVC core layer ensuring structural counter-balance and acoustic dampening matrix alignment.
-
7
Bottom layer
Heavy-duty, proprietary high-friction suction backing optimized for loose lay traction or acoustic underlayment integration.
-
8
Välinge / Unilin lock
Optional precision-milled profile matrix. Patented click systems available to meet specific rapid-locking blueprint requirements.
Integrated IXPE Underlayment
Pre-attached acoustic closed-cell foam pad providing superior sound dampening (high Delta IIC rating) and ergonomic underfoot cushioning.
Technical Features & Performance
Eco-Wellness
Formulated with 100% virgin premium raw materials under strict orthopedic health criteria, ensuring zero heavy metals and low VOC emissions for critical indoor spaces.
Loose Lay Safety
Class Bfl-S1 fireproof rating matched with advanced moisture-proof, anti-bacterial, and non-skid defense. Absolute dimensional stability across heavy traffic environments.
PUR Diamond Surface
Cross-linked polyurethane reinforcement coating shields the micro-embossed transparent wear layer, maximizing wear resistance, scratch immunity, and service lifespan.
Acoustic Underfoot
Multi-layered flexible vinyl architecture coupled with high-friction backing creates an advanced sound dampening matrix, drastically isolating commercial dynamic loads.

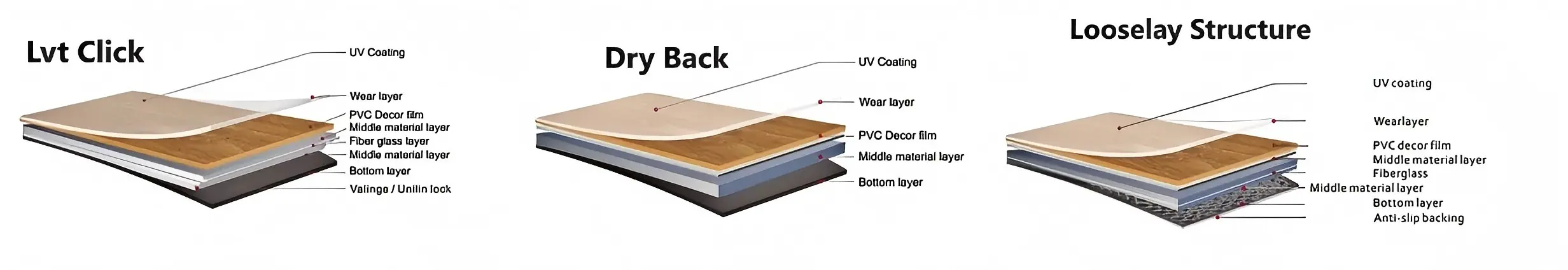

LVT Flooring Structure
Deep technical insights into composition matrices and dynamic structural performance.
Luxury Vinyl flooring is a waterproof hard surface floor that has the look and feel of authentic hardwood. Also universally referred to as LVT/LVP, luxury vinyl is highly cost-effective and extremely resistant to intense foot traffic, pets, and everyday high-frequency commercial utilities. This adaptive surfacing solution is highly straightforward to maintain and comprises a wide variety of architectural colors.
Engineered with a multi-layered matrix, LVT flooring is custom-built for exceptional durability. Typically, it incorporates a clear protective wear layer, a high-definition design print layer, a flexible or rigid vinyl core for structural strength, and an optimized backing layer for moisture resistance.
Typical Structure Layer Breakdown
Transparent and highly durable layer protecting against abrasions, stains, and daily contract traffic deterioration.
High-definition film image rendering wood, stone, or ceramic visuals for an authentic architectural finish.
Provides structural strength, flexibility, and absolute dimensional stability with flexible or rigid options.
Supports the core floor framework, effectively adding continuous moisture resistance and improving lifespan integrity.
(Optional) Integrated cushion layer adding superb acoustic sound absorption and premium ergonomic foot comfort.
Inspiration & Scenarios

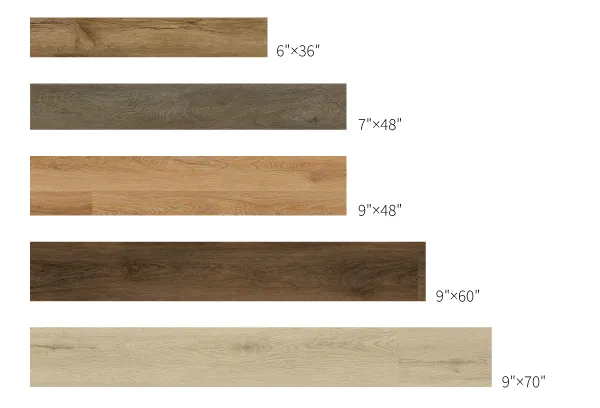

Luxury Vinyl Planks (LVP) Dimensions
Commercial-Grade Long Planks: 6" × 36", 7" × 48", 9" × 48", 9" × 60", 9" × 72" — Optimized for replicating premium architectural hardwood grains and linear organic textures across heavy contract environments.

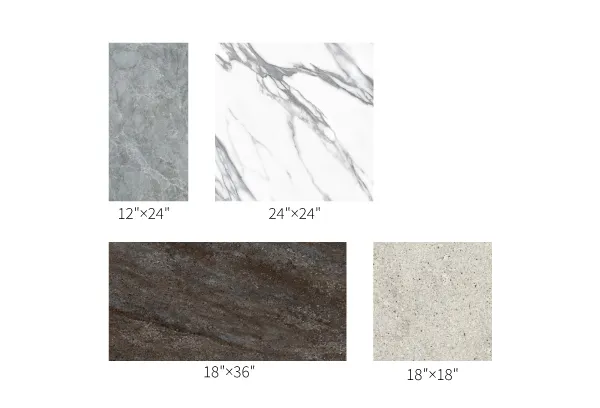

Architectural Vinyl Tiles (LVT) Dimensions
High-Specification Modular Tiles: 12" × 24", 24" × 24", 18" × 36", 18" × 18" — Perfectly calibrated for showcasing authentic natural stone, minimalist terrazzo, and contemporary stained ceramic textures.
LVT/LVP Flooring Specification
Standard baseline dimension configurations for contract and commercial projects.
| Physical Property | Unit | Factory Result |
|---|---|---|
| Total thickness | mm | 2.0 / 3.0 |
| Thickness of wear layer | mm | 0.1 / 0.2 / 0.3 / 0.5 |
| Surface treatment | — | PUR |
Technical Data
Compliance matrix certified under EN ISO and JIS architectural test methods.
| Item | Standard | Unit | Result Value |
|---|---|---|---|
| Length / Width | EN ISO 24342 | mm | ≤ 0.10% / ≤ 0.50mm |
| Squareness / Straightness | EN ISO 24342 | mm | ≤ 0.25mm |
| Total thickness | EN ISO 24346 | mm | ± 0.15mm |
| Wear layer | EN ISO 24340 | mm | ± 0.05mm |
| Total mass per unit area | EN ISO 23997 | — | +13% / -10% |
| Peeling Strength of layer | EN 431 | — | > 50N (50mm) |
| Residual indentation (average) | EN 433 | mm | < 0.1 |
| Fire Resistance | EN 13501-1 | — | Bfl-S1 |
| Dimension stability after exposure to heat | EN 434 | % | < 0.25 |
| Curling after exposure to heat | EN 434 | mm | < 2.0mm |
| Color fastness to light | EN ISO105 B02 | — | grade > 6 |
| Loss on heating | JIS A5705 | — | < 0.5% |
| Change in length to water absorption | JIS A5705 | mm | < 0.20mm |
Global Trust & Manufacturing Authority
Backed by international compliance verifications, scalable industrial capacity, and consistent global presence.
Global Trade Show
We actively benchmark our manufacturing capabilities on top-tier global stages. By consistently showcasing our portfolios at world-renowned exhibitions including DOMOTEX (Hannover), BAU (Munich), MosBuild (Moscow), DOMOTEX asia/CHINAFLOOR, the China Import and Export Fair (Canton Fair), and BATIMAT (Paris), we connect face-to-face with international contractors and distributors to deliver high-performance commercial flooring solutions.
A Reliable SPC Manufacturer
As an elite OEM/ODM manufacturing hub, we operate heavy-duty extrusion lines calibrated for strict dimensional tolerances. Our fully integrated supply chain guarantees stable premium capacity, flexible thick/size customization, and true factory-direct cost-efficiency.
International Certificates
Our products pass rigorous global verification protocols to ensure structural security and environmental wellness.
- CE Certified
- SGS Wear & Fire Test Passed
- TUV Rheinland Audited
- ISO 9001 / 14001 Quality System
FAQ of JIAHE DECORATION
Professional insights and technical guidance regarding manufacturing capacities, quality criteria, and installation specifications.
Are you a factory or manufacturer? What's your monthly throughput?
Yes, we are a direct manufacturer operating two production bases in ShenZhen, GuangDong. Our scalable industrial footprint delivers an aggregate monthly throughput of 300–400 containers of SPC, 200–300 containers of LVT, and 50–100 containers of MGO flooring to reliably back volume global procurement.
How do you guarantee product quality and consistency?
We strictly utilize 100% virgin raw materials with zero recycled content to eliminate sub-surface defects. Every phase of production—from continuous extrusion calibration to click-profile milling—is strictly audited by our in-house QC engineering team to verify structural and dimensional integrity.
What is your typical turnaround time for bulk container orders?
For initial OEM/ODM bookings, the standard lead time is 30–35 days upon receipt of the 30% T/T deposit (complimentary stock samples are prepared within 5 days). Repeat/regular program orders are expedited and typically finalized within a streamlined 20–25 days window.
Do you offer architectural products beyond standard vinyl floorings?
Yes. Our technical portfolio extends across high-spec alternatives including MGO flooring, mineral core flooring, rigid core timber, self-adhesive tiles, quartz sand tile solutions, and contract sheet/roll flooring. Furthermore, we manufacture matching SPC wall panels to provide seamless, coordinated interior surfacing solutions.
What is your sample policy regarding commercial prospecting?
In alignment with our corporate trade policy, physical flooring swatches are provided completely free of charge. The prospective buyer is simply requested to provide a courier account number (DHL/FedEx/UPS) to cover the corresponding freight logistics costs.
What are your standard commercial payment parameters?
Our baseline framework operates on a 30% advance deposit via T/T, with the remaining 70% balanced against the presentation of the Bill of Lading (B/L) copy. Credit and financial flexibility may be customized for long-term contract partners and VIP accounts.
Do you provide full-spectrum OEM private label solutions?
Absolutely. We deliver full-spectrum private label manufacturing covering customized wear layer parameters, bespoke core formulations, custom dimensions, and branded packaging cartons. Our marketing team can also collaborate to co-develop architectural swatch books and retail display boards.
Can you develop and calibrate proprietary print-film designs for our brand?
Yes, we offer exclusive color film customization services. Our design team can replicate natural timber or stone artifacts provided via physical panels or high-resolution scanning to ensure your brand maintains a completely unique visual edge in local markets.
What are the recommended maintenance and janitorial protocols?
To sustain the integrity of our DIAMOND surface treatment, regularly sweep or vacuum surface particulate. For deeper damp mopping, always utilize a professional neutral, non-rinsing resilient floor cleaner. Never apply abrasive scouring powders, oil-based soaps, or household dish detergents.
How do you technically distinguish Chevron vs. Herringbone layouts?
While both represent classic parquetry motifs, they require different geometric milling profile configurations. Herringbone planks feature 90-degree squared joints that butt against each other for a traditional interlocking zig-zag, whereas Chevron profiles feature precision 45 or 60-degree mitered angle cuts, meeting at a true point to create a continuous V-shaped running centerline.
Request Commercial Sample Asset Support
Get high-tier architecture binder cases, hand-held color swatches, sample desktop displays, and complete certified technical data sheets directly from our factory lines.
