Herringbone SPC Flooring – Wear Resistant, Antibacterial, Waterproof
Basic Info.
Product Description

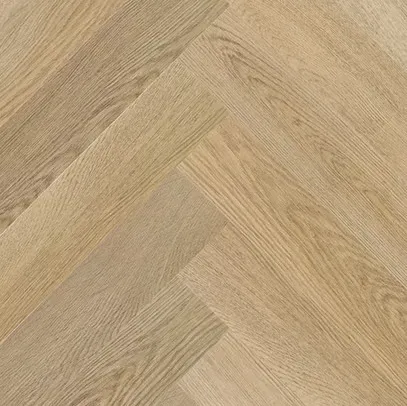

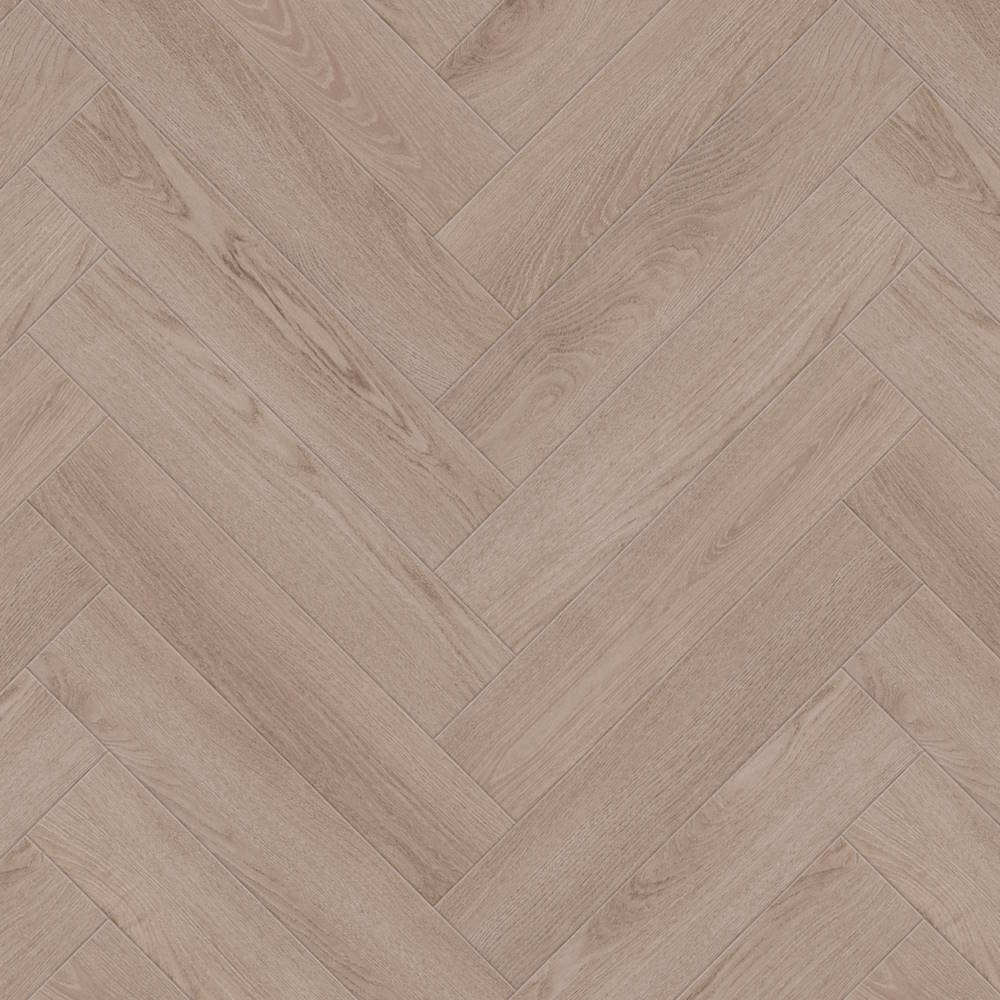

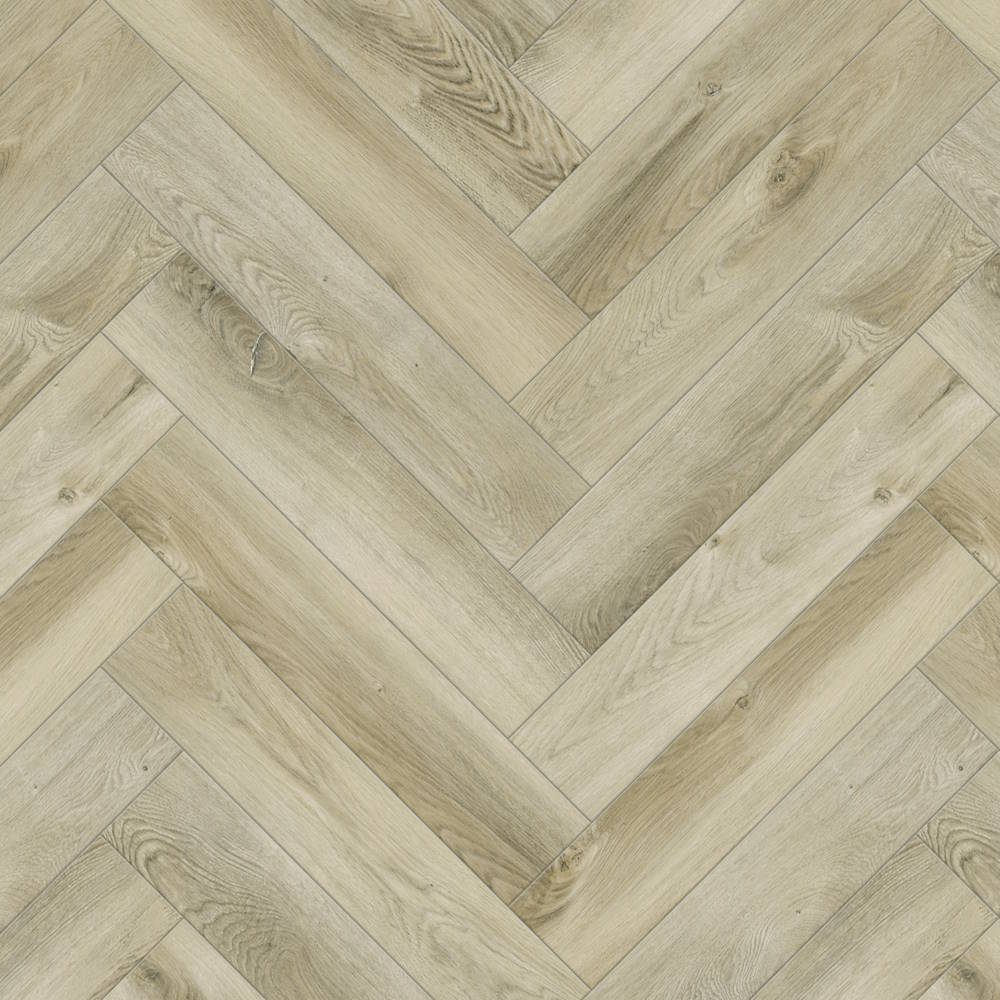

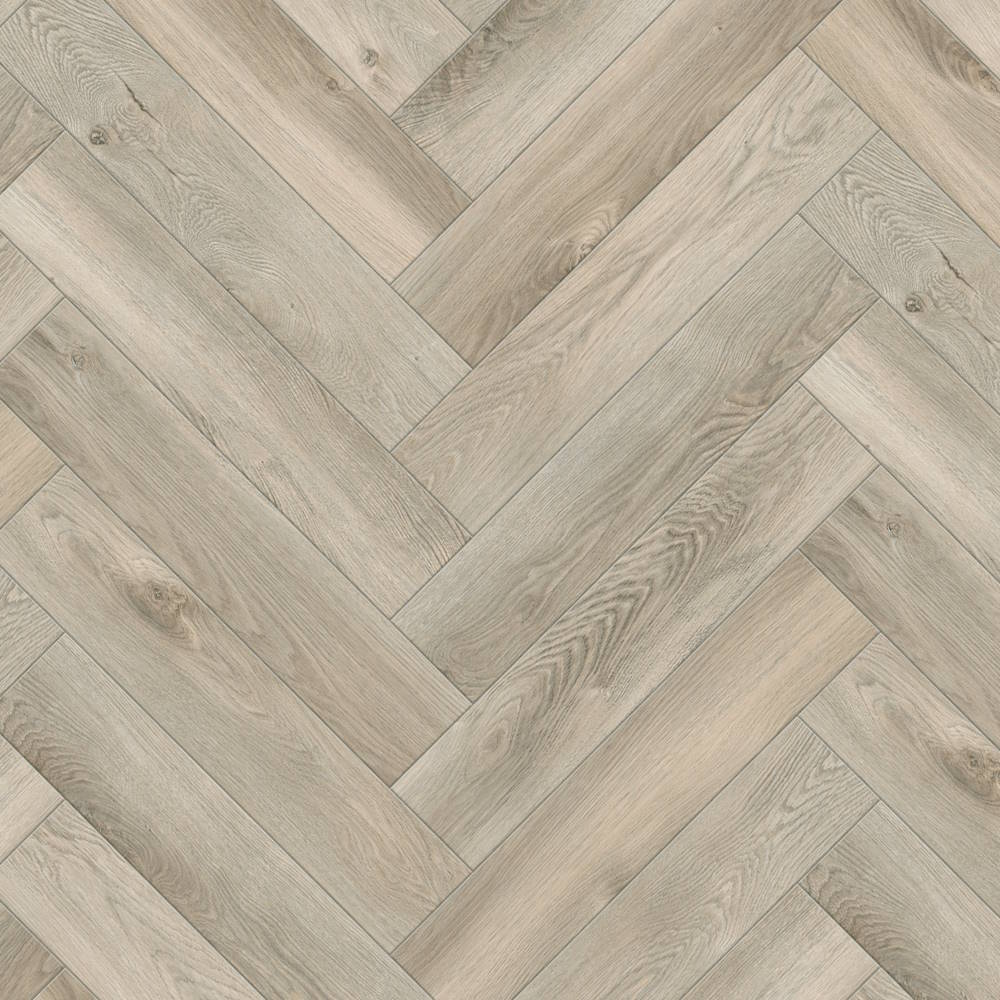

Our Herringbone SPC Flooring Herringbone SPC flooring is a range of SPC flooring which the flooring planks always more short in size, and can create an individual classic and modernism style. The rectangular planks ranged in a 'V' shape, layout forms a zigzag pattern that instantly captures your eye. So if you're tired of the same things, consider Herringbone,it will bring you a novel visual experience.
Multiple herringbone sizes available：125*625mm; 127*635mm; 152*915mm; 183*1220; 231*1220. Besides we also support custom size.
100% Waterproof Extruded Matrix Core
Licensed Unilin Interlocking Click Profiling
• SPC Structure
• Structural Description
UV Coating: Enhanced stain-resistant, anti-bacterial and water-resistant flooring.
Wear layer: Protect the floor color from wear and tear for a long time, so that the floor lasts for a long time.
Decorative layer: Gives the floor an authentic natural wood texture.
Base layer: Calcium powder and resin powder are mixed in a certain proportion to form a composite floor covering material, which enhances the pressure resistance of the floor.
Anti-slip layer: Non-slip, shock-absorbing and quiet.
• Product Features
1. Unique and beautiful:
Herringbone pattern is a classic way of laying, with a strong sense of three-dimensionality and dynamism, making the room look more lively.HIGH Strength: Herringbone SPC flooring is made of stone powder and PVC resin, which has high strength and abrasion resistance, and can keep good condition for a long time.
2. Fully waterproof
Can be used in kitchens, bathrooms and other areas prone to moistur.
3. Dimensional stability
Not easily affected by temperature and humidity changes.
4. Clicking system
Herringbone SPC flooring usually adopts a locking system, which is easy and quick to install without glue or nails.
Our promise to you:
1. Super scratch resistant surface, pet-friendly, no need to worry about pets leaving scratches on the floor
2. Super anti-fouling surface, easy to clean.
3. We guarantee that the flooring are made of virgin materials, basic physical and chemical parameter meet or exceed EU standards
4. We cooperate with many high-quality color film factories, there are many colors to choose from, and we can match the style and color according to the customer's preferences.

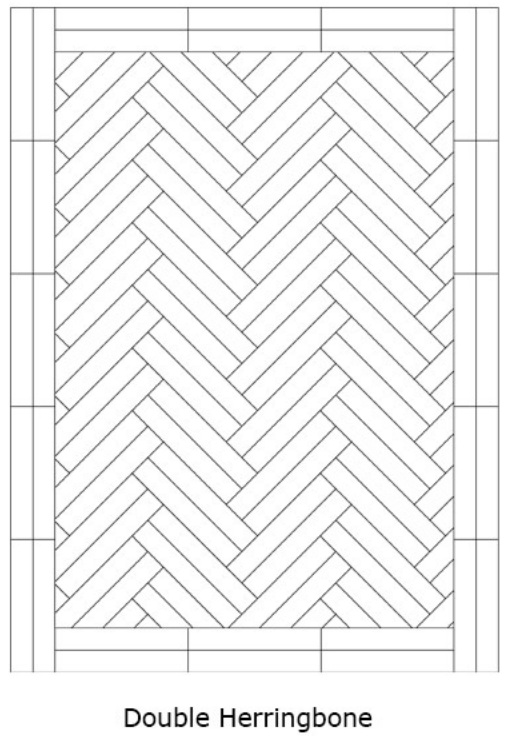

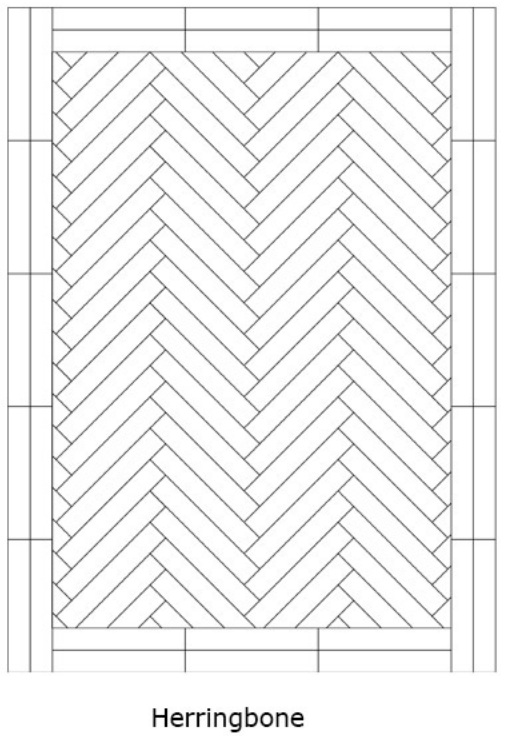

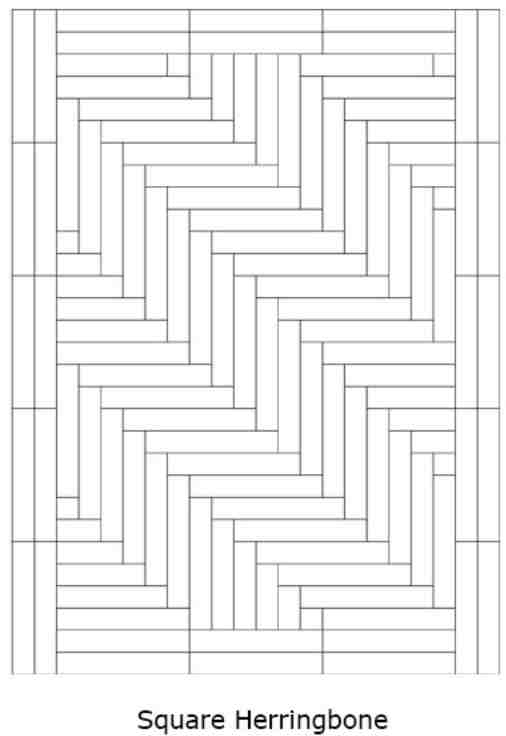

• Installation Method
Random Pattern
Subway Pattern
45° Random Pattern
Technical Parameters & Test Standards
| Product information | Herringbone SPC flooring | |
| Material | 100% virgin PVC + Calcium calcite powder | |
| Plank Size | 180*1230mm | |
| Finish | UV Coating, Semi-matt 6-8 degree | |
| Emboss | Deep embossed | |
| Installation | Click system | |
| Locking System | Välinge 2G/2G | |
| Bevel | Four-sided bevel | |
| Floor heating installation | Only suitable for underfloor heating | |
| UNDERLAYMENT INFORMATION | ||
| Material | IXPE | |
| Overall Thickness | 1.0mm (+/- 0.1, unstressed) | |
| REFERENCE | NORMS | RESULT |
|---|---|---|
| Tolerance of Length | EN ISO 24342 | ≤0.15% , up to 0.5mm maximum |
| Tolerance of Width | EN ISO 24342 | ≤0.15% , up to 0.5mm maximum |
| Tolerance on the squareness | EN ISO 24342 | side length ≤ 400mm, squareness ≤ 0.25mm side length > 400mm, squareness ≤ 0.35mm |
| Thickness | EN ISO 24346 | 3.5 / 4.2 mm (+/-0.15mm) |
| Wear Layer Thickness | EN ISO 24340 | 0.3 / 0.5 mm (+/-0.05mm) |
| Determination of stability | EN ISO 23999 | ≤ 0.15% |
| Curling | EN ISO 23999 | ≤ 1mm |
| Color fastness | EN ISO 105-B02 | 6 class |
| Reaction to Fire | EN 13501-1 | Bfl-S1 |
| Castor Chair Resistance | EN 425 | Pass |
| Peeling strength of layer | EN 431 | >= 95N/5cm |
| Locking strength | ISO 24334 | Long-side: >=150N/5cm Short-side: >=150N/5cm |
| Classification | EN 685 | Class 23 for residential / Class 33 for commercial |
| Stain Resistance | EN 423 | Not affected |
| VOC | ISO 16000 | VOC A+ |
| Slip Resistance | DIN 51130 | Class R9 |
| Residual Indentation | ISO 24343-1:2007 | ≤0.1mm |
| Chemical Products Resistance | EN 423 | Pass |
| Ortho-Phthalates | US EPA 3550c:2007 | None |
| PCP | EN 12673 | None |
| Formaldehyde Emission | EN 717-1 | E1 |
COLOR
JH81001

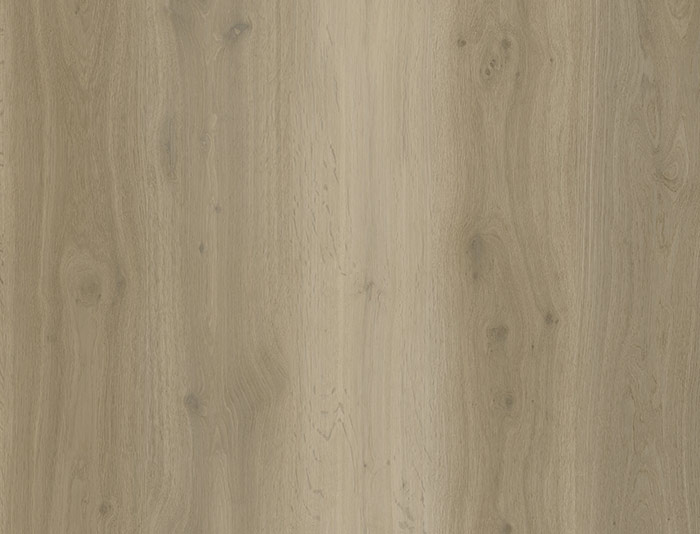

JH81002

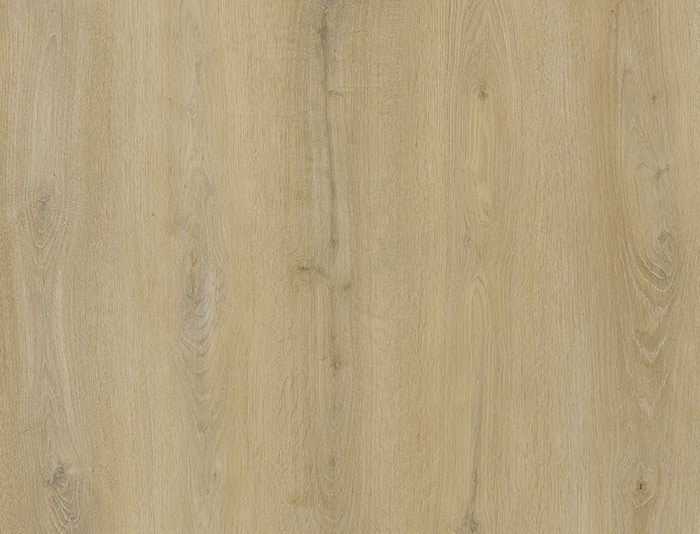

JH81003

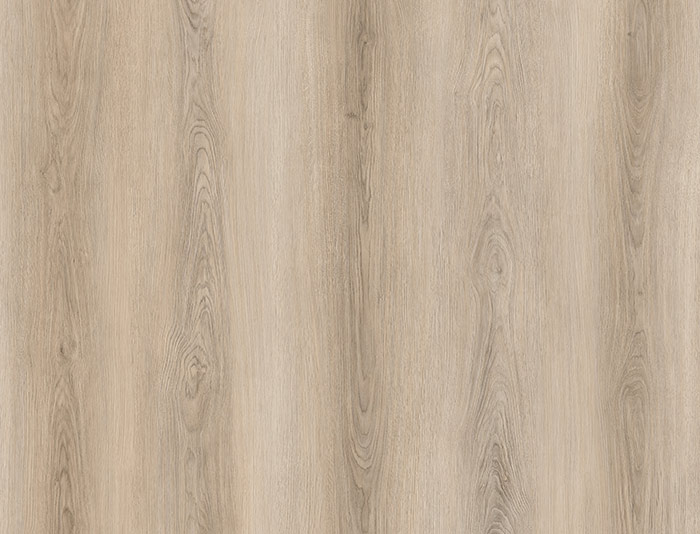

JH81004

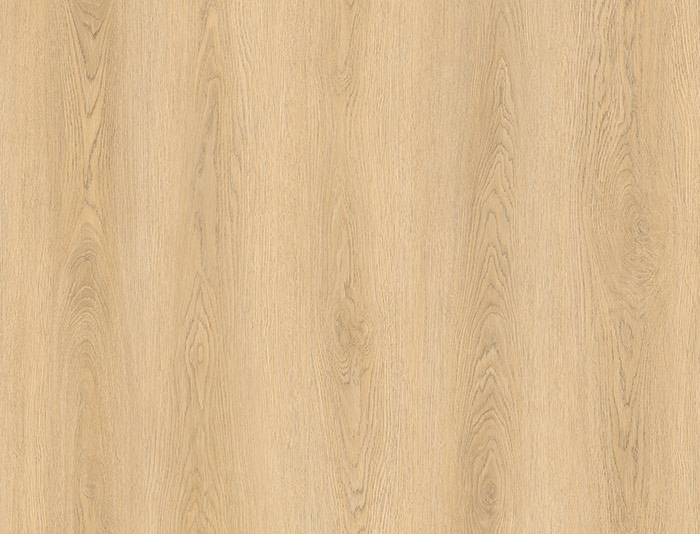

JH81005
