High Density Rigid Core Parallel Linear Wood Grain SPC Horizon Plank Flooring
Basic Info.
Product Description
Our Rigid Core SPC Horizon Plank SPC horizon plank flooring surfaces are designed with a variety of textures and colors that mimic natural wood, marble, and many other materials to meet the needs of different decorating styles;SPC horizon plank flooring surfaces are designed with a variety of textures and colors that mimic natural wood, marble, and many other materials to meet the needs of different decorating styles.
100% Waterproof Extruded Matrix Core
Licensed Unilin Interlocking Click Profiling

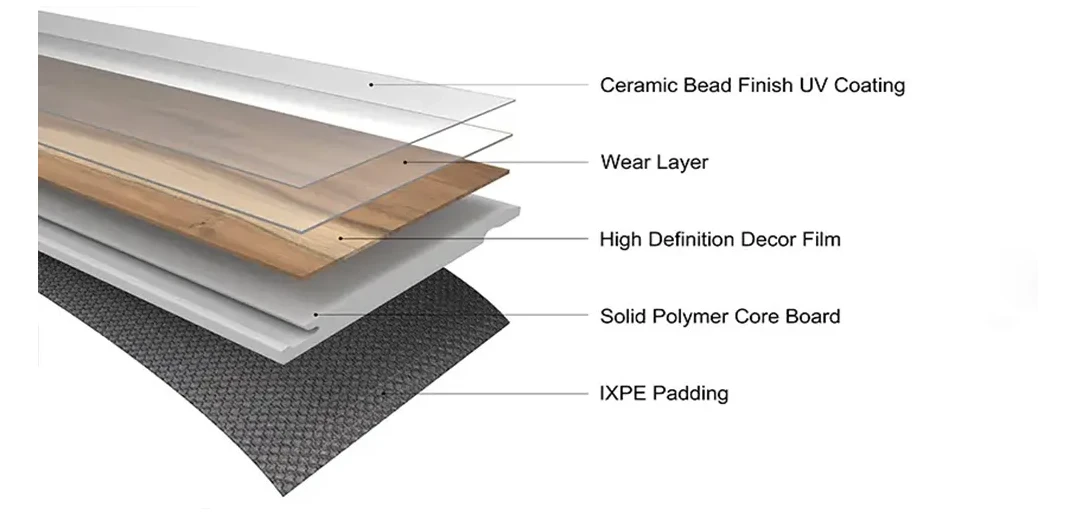

• SPC Structure
• Structural Description
UV Coating: Enhanced stain-resistant, anti-bacterial and water-resistant flooring.
Wear layer: Protect the floor color from wear and tear for a long time, so that the floor lasts for a long time.
Decorative layer: Gives the floor an authentic natural wood texture.
Base layer: Calcium powder and resin powder are mixed in a certain proportion to form a composite floor covering material, which enhances the pressure resistance of the floor.
Anti-slip layer: Non-slip, shock-absorbing and quiet.
• Product Features
1. Durability
The stone-plastic composite core provides superior strength and durability against dents, scratches and impacts. The strong wear-resistant layer on the surface prevents daily wear and tear, extending the life of the floor.
2. Waterproof
SPC Horizon flooring is impervious to water, making it suitable for installation in areas prone to moisture such as kitchens, bathrooms and basements.
3. Stability
The rigid core prevents expansion and contraction, ensuring that the planks remain stable under varying conditions of temperature and humidity.
4. Easy installation
The interlocking design allows for quick and easy installation, often without the use of adhesives, and can be installed over most existing floors with minimal treatment of the subfloor.
5. Easy to clean
The surface is easy to clean and maintain, requiring only regular sweeping and occasional mopping with a damp mop.
6. Environmentally Friendly
Made from environmentally friendly materials, it is fully recyclable and contributes to sustainability.
Our promise to you:
1. Super scratch resistant surface, pet-friendly, no need to worry about pets leaving scratches on the floor
2. Super anti-fouling surface, easy to clean.
3. We guarantee that the flooring are made of virgin materials, basic physical and chemical parameter meet or exceed EU standards
4. We cooperate with many high-quality color film factories, there are many colors to choose from, and we can match the style and color according to the customer's preferences.
• Installation Method
Random Pattern
Subway Pattern
45° Random Pattern
Technical Parameters & Test Standards
| Product information | SPC Click | |
| Material | 100% virgin PVC + Calcium calcite powder | |
| Plank Size | 180*1230mm / 230*1230mm | |
| Finish | UV Coating, Semi-matt 6-8 degree | |
| Emboss | Deep embossed | |
| Installation | Click system | |
| Locking System | Välinge 2G/2G | |
| Bevel | Four-sided bevel | |
| Floor heating installation | Only suitable for underfloor heating | |
| UNDERLAYMENT INFORMATION | ||
| Material | IXPE | |
| Overall Thickness | 1.0mm (+/- 0.1, unstressed) | |
| REFERENCE | NORMS | RESULT |
|---|---|---|
| Tolerance of Length | EN ISO 24342 | ≤0.15% , up to 0.5mm maximum |
| Tolerance of Width | EN ISO 24342 | ≤0.15% , up to 0.5mm maximum |
| Tolerance on the squareness | EN ISO 24342 | side length ≤ 400mm, squareness ≤ 0.25mm side length > 400mm, squareness ≤ 0.35mm |
| Thickness | EN ISO 24346 | 3.5 / 4.2 mm (+/-0.15mm) |
| Wear Layer Thickness | EN ISO 24340 | 0.3 / 0.5 mm (+/-0.05mm) |
| Determination of stability | EN ISO 23999 | ≤ 0.15% |
| Curling | EN ISO 23999 | ≤ 1mm |
| Color fastness | EN ISO 105-B02 | 6 class |
| Reaction to Fire | EN 13501-1 | Bfl-S1 |
| Castor Chair Resistance | EN 425 | Pass |
| Peeling strength of layer | EN 431 | >= 95N/5cm |
| Locking strength | ISO 24334 | Long-side: >=150N/5cm Short-side: >=150N/5cm |
| Classification | EN 685 | Class 23 for residential / Class 33 for commercial |
| Stain Resistance | EN 423 | Not affected |
| VOC | ISO 16000 | VOC A+ |
| Slip Resistance | DIN 51130 | Class R9 |
| Residual Indentation | ISO 24343-1:2007 | ≤0.1mm |
| Chemical Products Resistance | EN 423 | Pass |
| Ortho-Phthalates | US EPA 3550c:2007 | None |
| PCP | EN 12673 | None |
| Formaldehyde Emission | EN 717-1 | E1 |

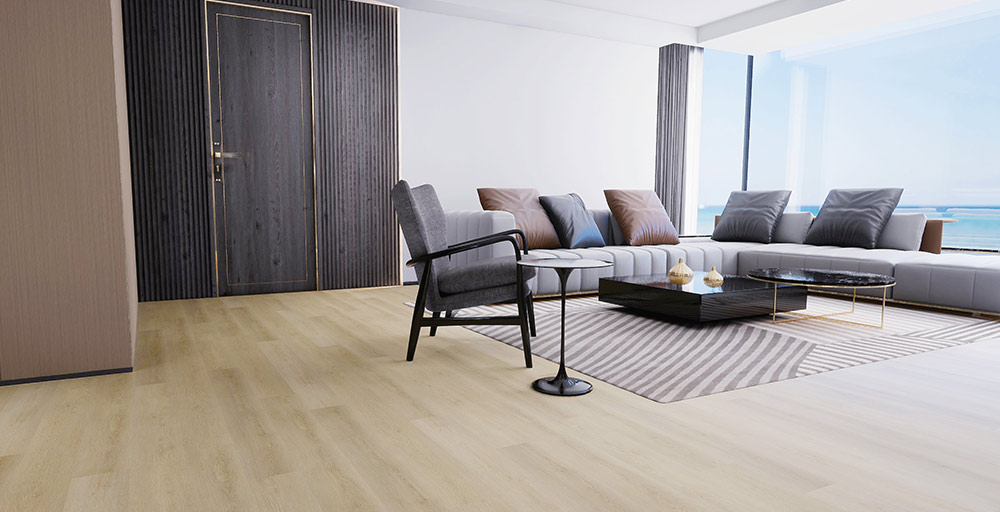

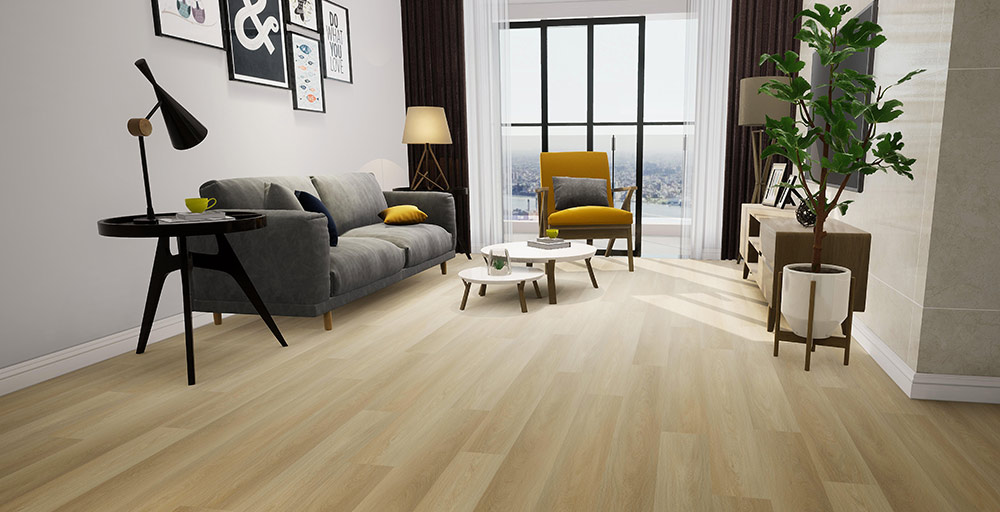

URBAN SERIES
• Technical Data
| Wear Layer | 0.3mm |
| Lock System | Valinge 2G-2G |
| Overall Thickness | 5mm (4+1.0mmIXPE) |
| Size | 180x1230mm |
• Color

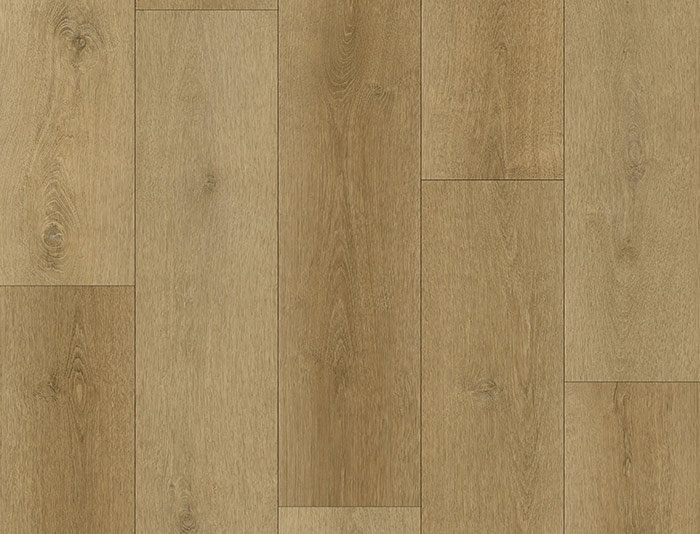

JH2201

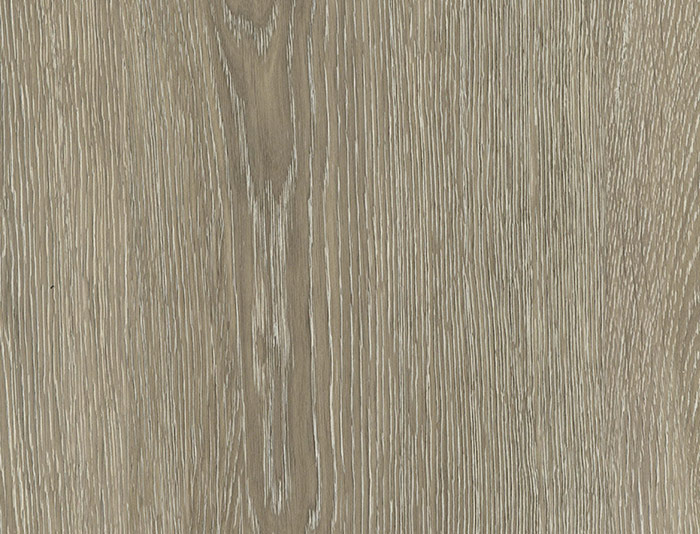

JH2202

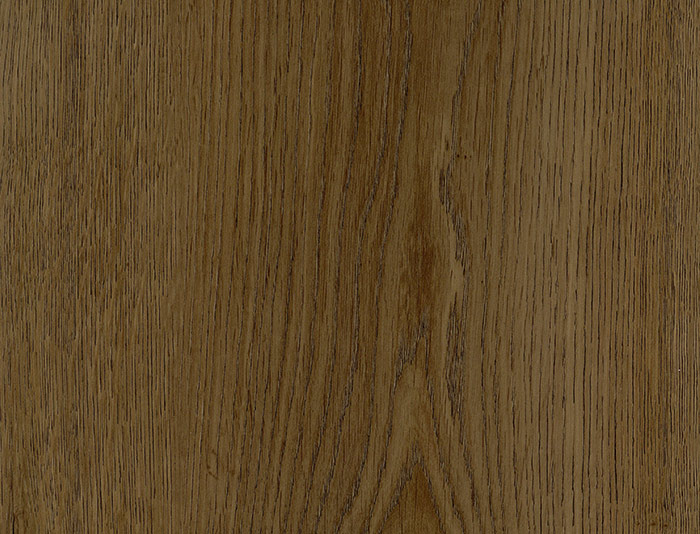

JH2203

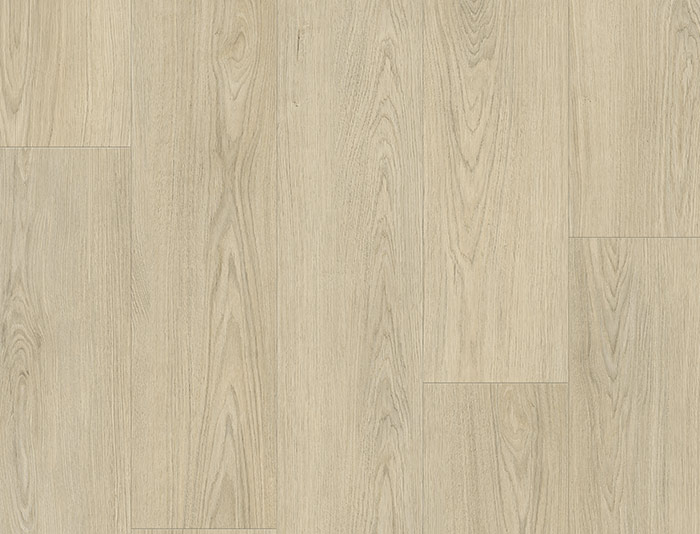

JH2204

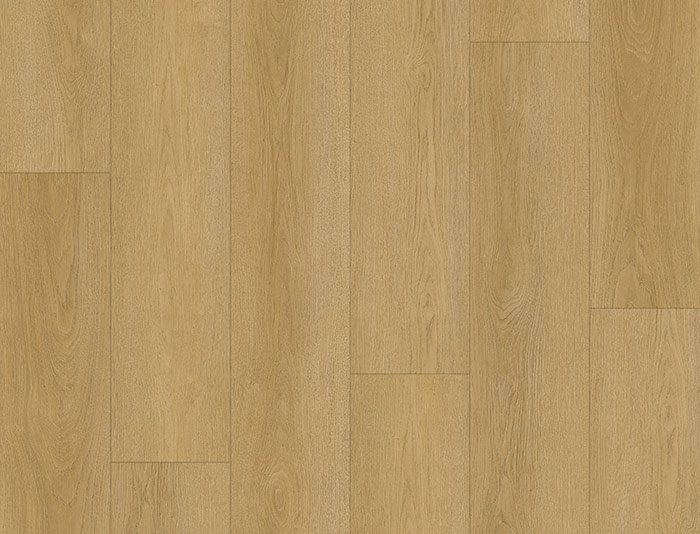

JH2205

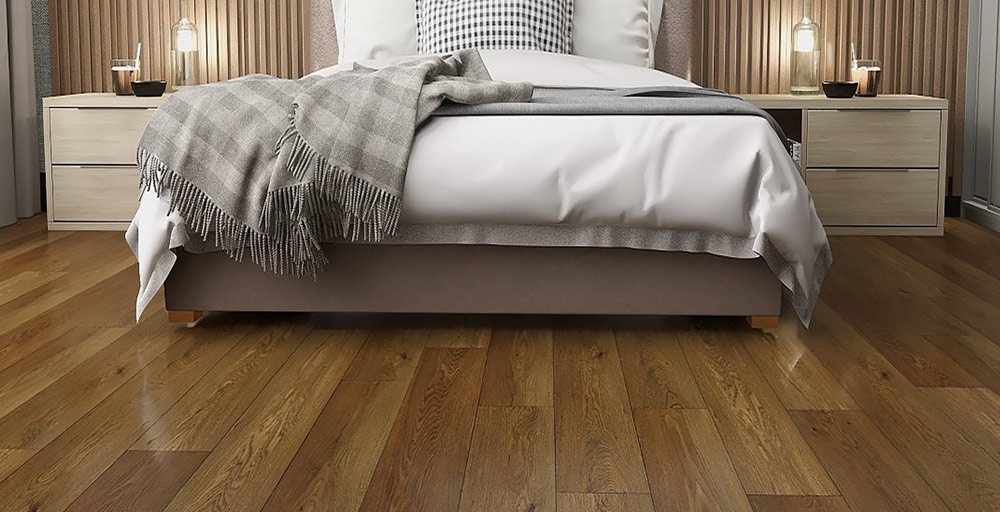

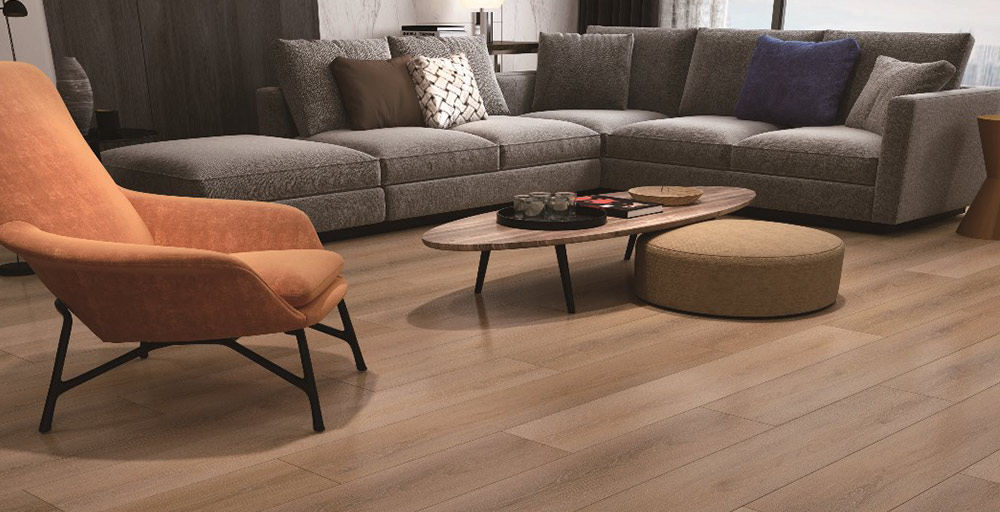

GREVEN SERIES
• Technical Data
| Wear Layer | 0.5mm |
| Lock System | Valinge 2G-2G |
| Overall Thickness | 6mm (5+1.0mmIXPE) |
| Size | 230x1230mm |
• Color

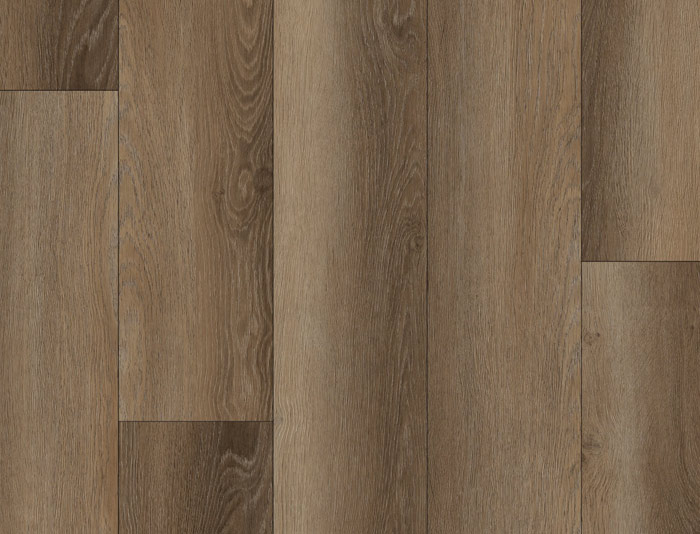

JH7601

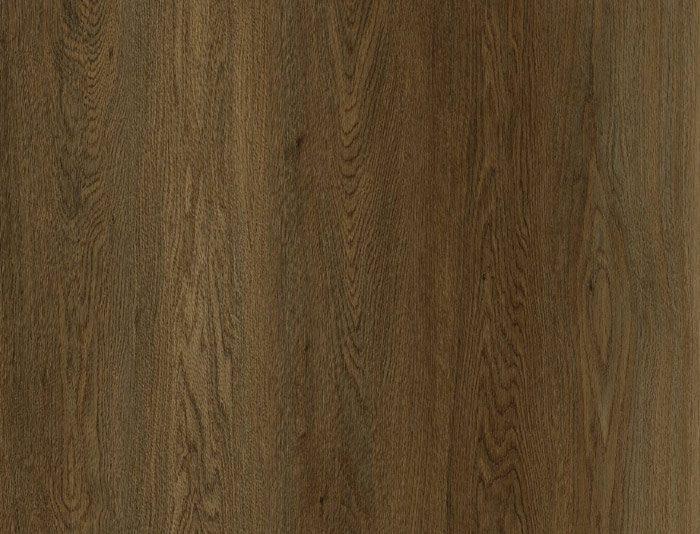

JH7602

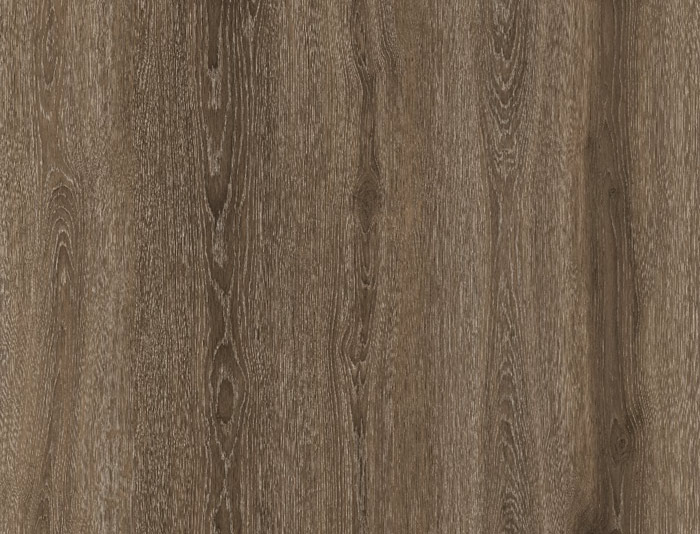

JH7603

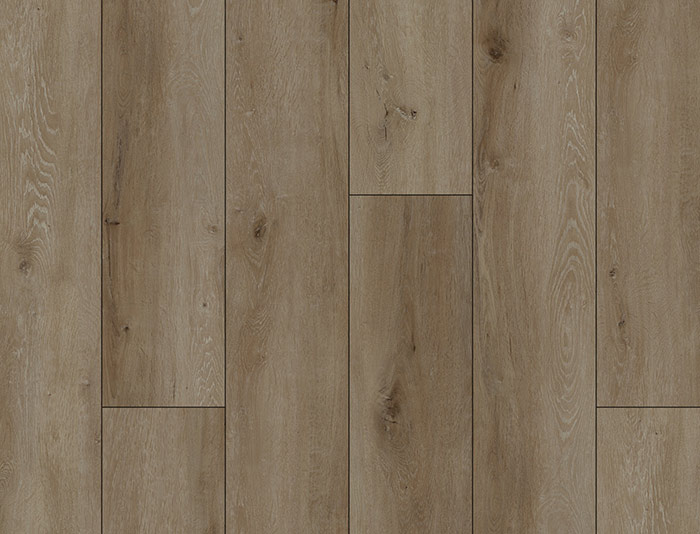

JH7604

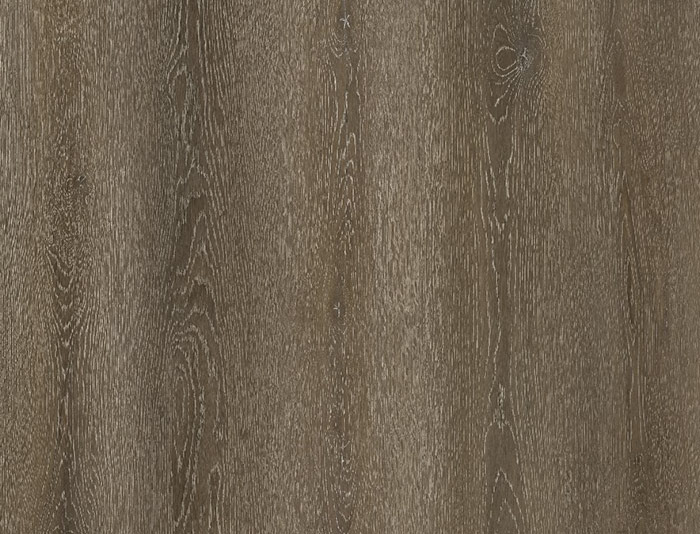

JH7605

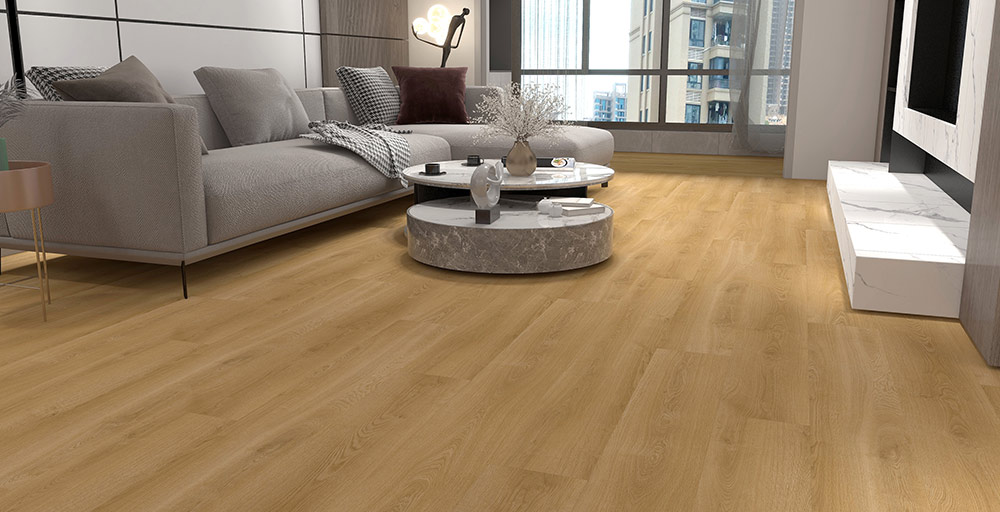

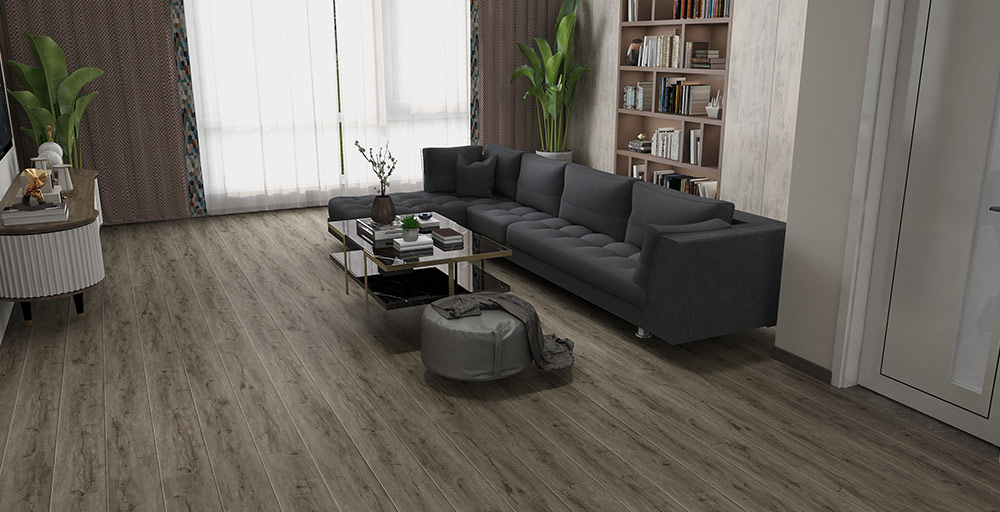

ROAL SERIES
• Technical Data
| Wear Layer | 0.5mm |
| Lock System | Unilin Click |
| Overall Thickness | 5mm (4+1.0mmIXPE) |
| Size | 180x1230mm |
• Color

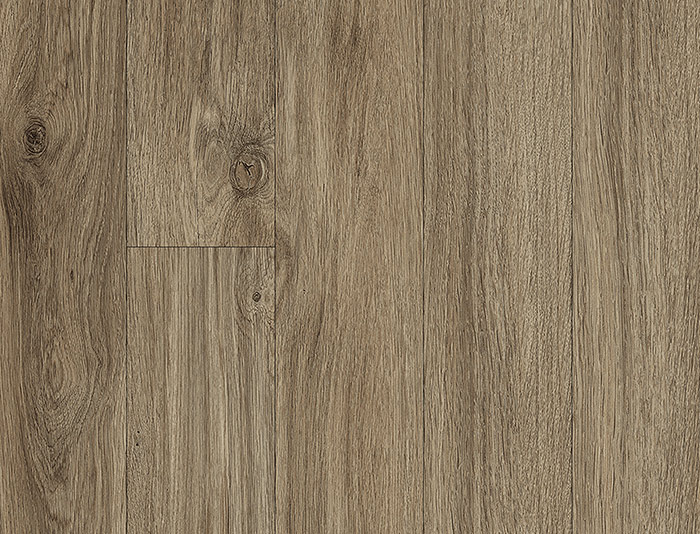

JH7701

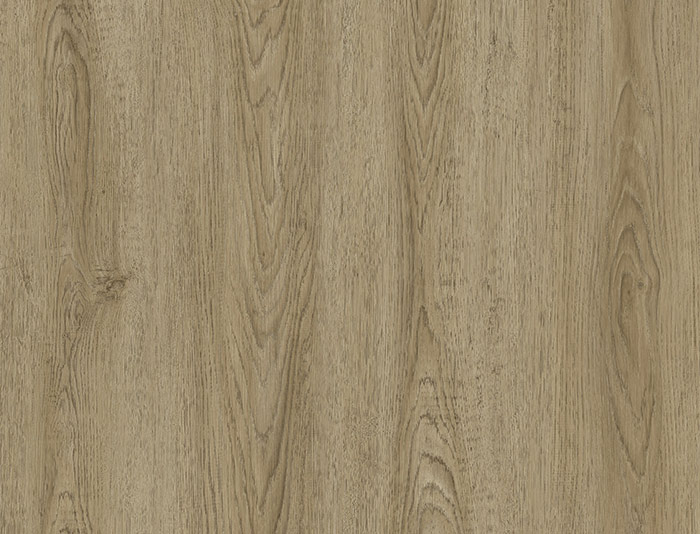

JH7702

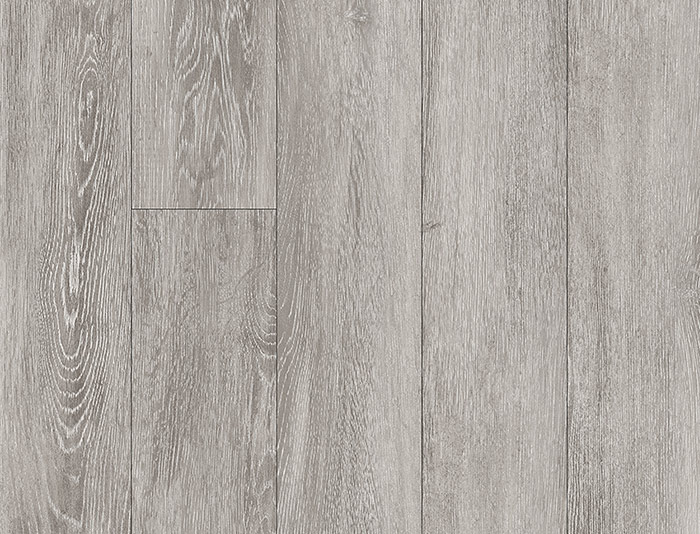

JH7703

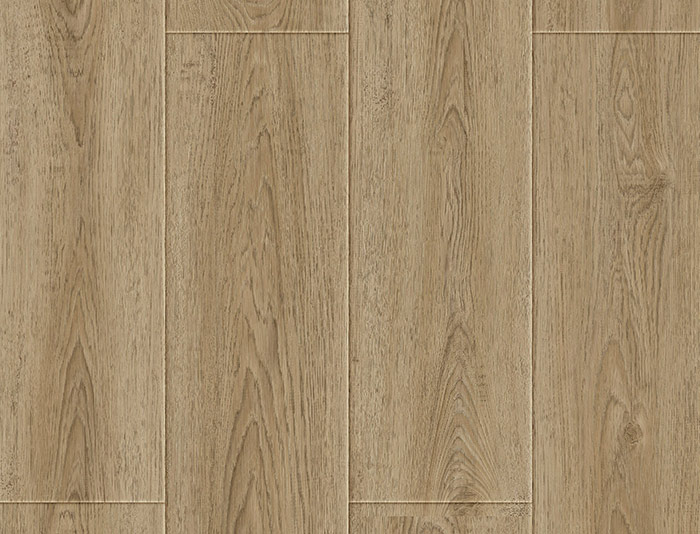

JH7704

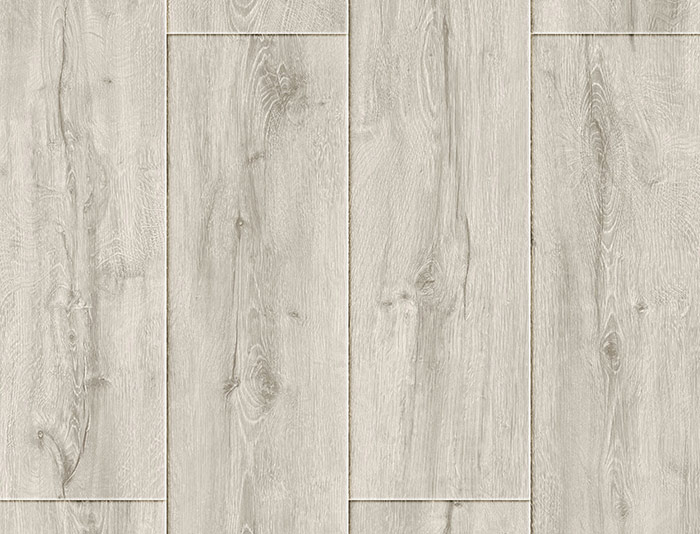

JH7705
